Standing Seam Roof Panel Parapet Trim

Parapet High Side Eave Flash - Fixed

Part #	Length	Girth	Weight Each
FL-276	10′-2″	12″	7.91#

Parapet High Side Eave Flash – Fixed Note:
Use with Ultra-Dek®,BattenLok® HS and SuperLok® roof systems only
Specify roof slope

Parapet High Side Eave Flash - Floating

Part #	DIM “A”	Length	Girth	Weight Each
FL-275	3 1/2″	10′-2″	12 1/2″	8.24#
FL-274	4 1/2″	10′-2″	12 1/2″	9.26#

Parapet High Side Eave Flash – Floating Note:
Specify roof slope
Use with all SSR roof systems

Parapet Rake Flash - Fixed

Part #	DIM “A”	Length	Girth	Weight Each
FL-280	2″	10′-2″	8″	5.27#
FL-281	4″	10′-2″	10″	6.59#
FL-282	6″	10′-2″	12″	8.84#

Parapet Rake Flash – Fixed Note:
Use with Ultra-Dek®,BattenLok® HS and SuperLok® roof systems only

Parapet Rake Flash - Floating

Part #	DIM “A”	Length	Girth	Weight Each
FL-285	3″	10′-2″	8″	5.27#
FL-286	5″	10′-2″	10″	6.59#
FL-287	7″	10′-2″	12″	8.84#

Parapet Rake Flash – Floating Note:
Use with all SSR roof systems

Parapet Rake Cleat

Part #	DIM “A”	Length	Girth	Weight Each
FL-290	3/4″	10′-2″	2 1/4″	1.48#
FL-291	1″	10′-2″	2 1/2″	1.65#

Parapet Rake Cleat Note:
Use FL-290 with Ultra-Dek® and Double-Lok® roof systems only
Use with FL-285, FL-286 or FL-287 Parapet Rake Flash – Floating
Use FL-291 with BattenLok® HS and SuperLok® roof systems only
Use with FL-285, FL-286 or FL-287 Parapet Rake Flash – Floating

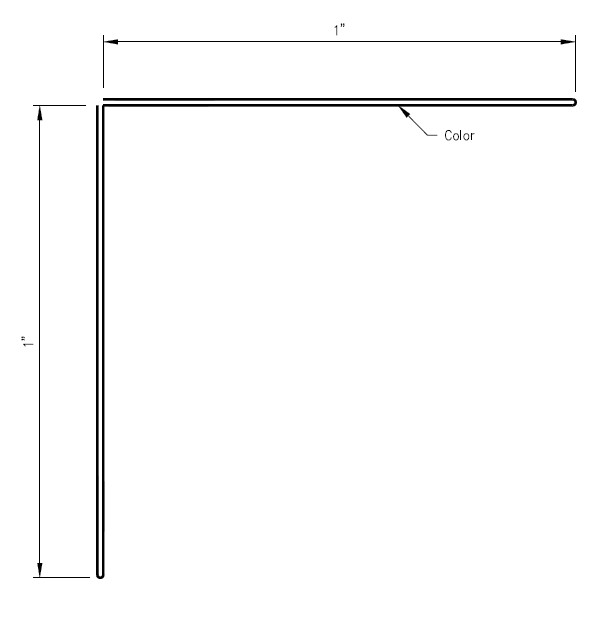

Parapet Rake Cleat - High Wind

Part #	Length	Girth	Weight Each
FL-292	10′-2″	3 1/2″	2.90#

Parapet Rake Cleat – High Wind Note:
Use with BattenLok® HS and SuperLok® roof systems only
Use with FL-285, FL-286 or FL-287 Parapet Rake Flash – Floating
